STRAHL Downhole Camera - 2025

Hydrogeology, Geology, & Environmental Issues / Field Methods & Procedures

The newly improved STRAHL Downhole Camera System is well suited for inspecting various boreholes, drllholes, reservoirs, shafts, tanks and other objects from the top down.

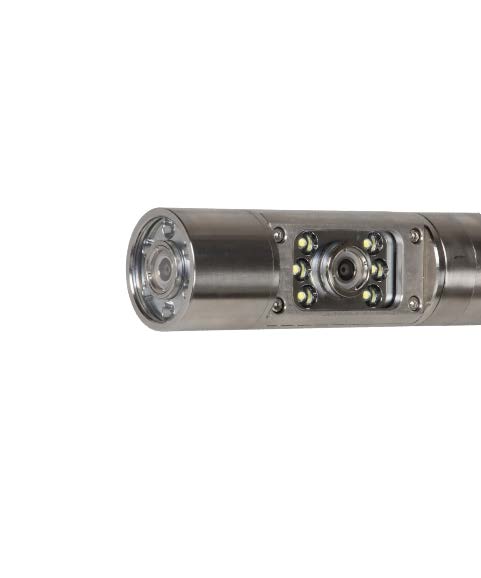

It is equipped with a Ø45mm (1.77") dual camera head: one sideways camera with 360-degree rotation to the right and left for thorough, informative footage of sidewalls, and a downward camera with a fixed wide-angle lens to view downhole.

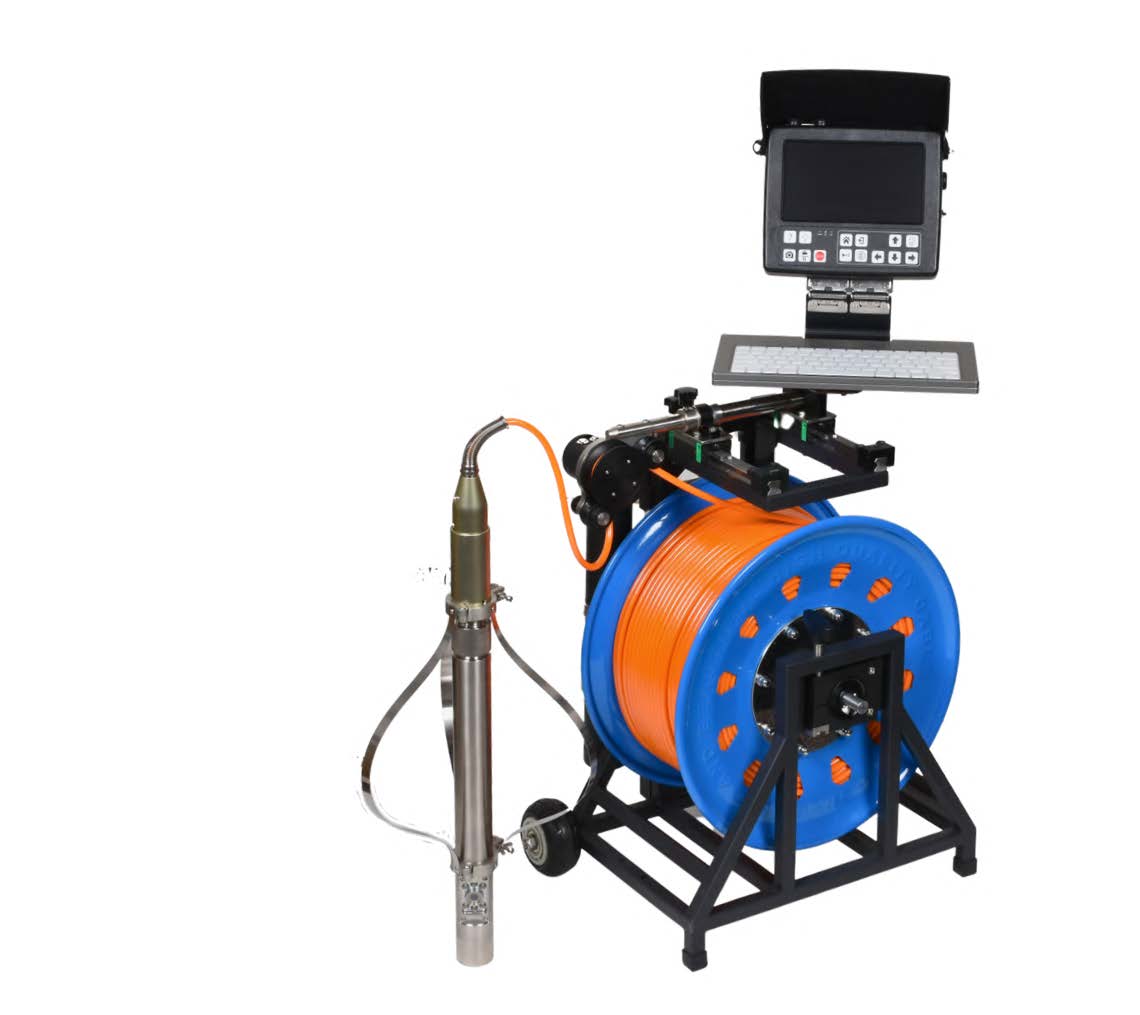

The inspection system works with a Ø8mm flexible cable of 200m(656 ft.) length that can be securely coiled on a manually operated reel. The STRAHL Downhole Camera features a compact, battery operated control unit with a high-definition 8” IPS LCD display. The inspection process can be viewed on the display right on-site, captured as snapshots or as video files. All data can be saved on a memory flash.

For additional informations, see (here).
